2020 VCAA Maths Methods Exam 1
This is the full VCE Maths Methods Exam with worked solutions. You can also try Mini-Tests, which are official VCAA exams split into short tests you can do anytime.
Number of marks: 40
Reading time: 15 minutes
Writing time: 1 hours
Instructions
• Answer all questions in pencil on your Multiple-Choice Answer Sheet.
• Choose the response that is correct for the question.
• A correct answer scores 1; an incorrect answer scores 0.
• Marks will not be deducted for incorrect answers.
• No marks will be given if more than one answer is completed for any question.
• Unless otherwise indicated, the diagrams in this book are not drawn to scale.
a. Let \(y = x^2\sin(x)\).
Find \(\frac{dy}{dx}\). 1 mark
b. Evaluate \(f'(1)\), where \(f: \mathbb{R} \to \mathbb{R}\), \(f(x) = e^{x^2 - x + 3}\). 2 marks
A car manufacturer is reviewing the performance of its car model X. It is known that at any given six-month service, the probability of model X requiring an oil change is \(\frac{17}{20}\), the probability of model X requiring an air filter change is \(\frac{3}{20}\) and the probability of model X requiring both is \(\frac{1}{20}\).
a. State the probability that at any given six-month service model X will require an air filter change without an oil change. 1 mark
b. The car manufacturer is developing a new model, Y. The production goals are that the probability of model Y requiring an oil change at any given six-month service will be \(\frac{m}{m+n}\), the probability of model Y requiring an air filter change will be \(\frac{n}{m+n}\) and the probability of model Y requiring both will be \(\frac{1}{m+n}\), where \(m, n \in Z^+\).
Determine \(m\) in terms of \(n\) if the probability of model Y requiring an air filter change without an oil change at any given six-month service is 0.05. 2 marks

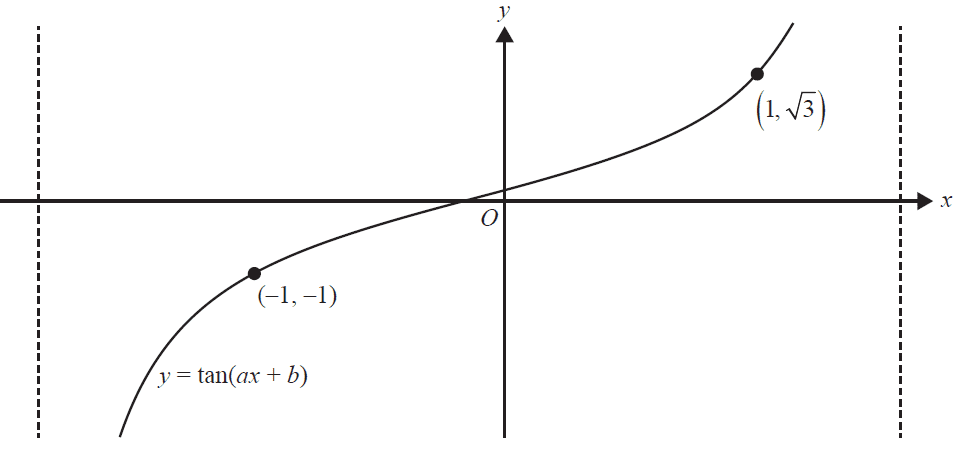

Shown below is part of the graph of a period of the function of the form \(y = \tan(ax+b)\).
The graph is continuous for \(x \in [-1, 1]\).
Find the value of \(a\) and the value of \(b\), where \(a > 0\) and \(0 < b < 1\). 3 marks
Solve the equation \(2\log_2(x+5) - \log_2(x+9) = 1\). 3 marks
For a certain population the probability of a person being born with the specific gene SPGE1 is \(\frac{3}{5}\).
The probability of a person having this gene is independent of any other person in the population having this gene.
a. In a randomly selected group of four people, what is the probability that three or more people have the SPGE1 gene? 2 marks
b. In a randomly selected group of four people, what is the probability that exactly two people have the SPGE1 gene, given that at least one of those people has the SPGE1 gene? Express your answer in the form \(\frac{a^3}{b^4 - c^4}\), where \(a, b, c \in Z^+\). 2 marks
Let \(f: [0, 2] \to \mathbb{R}\), where \(f(x) = \frac{1}{\sqrt{2}}\sqrt{x}\).
a. Find the domain and the rule for \(f^{-1}\), the inverse function of \(f\). 2 marks

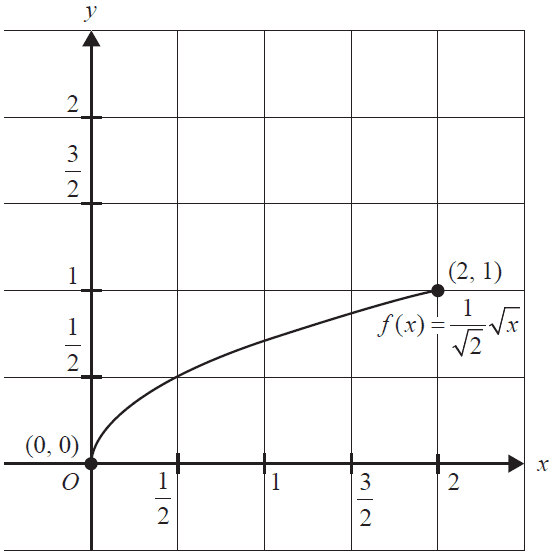

The graph of \(y = f(x)\), where \(x \in [0, 2]\), is shown on the axes below.
b. On the axes above, sketch the graph of \(f^{-1}\) over its domain. Label the endpoints and point(s) of intersection with the function \(f\), giving their coordinates. 2 marks
c. Find the total area of the two regions: one region bounded by the functions \(f\) and \(f^{-1}\), and the other region bounded by \(f\), \(f^{-1}\) and the line \(x=1\). Give your answer in the form \(\frac{a-b\sqrt{b}}{6}\), where \(a, b \in Z^+\). 4 marks

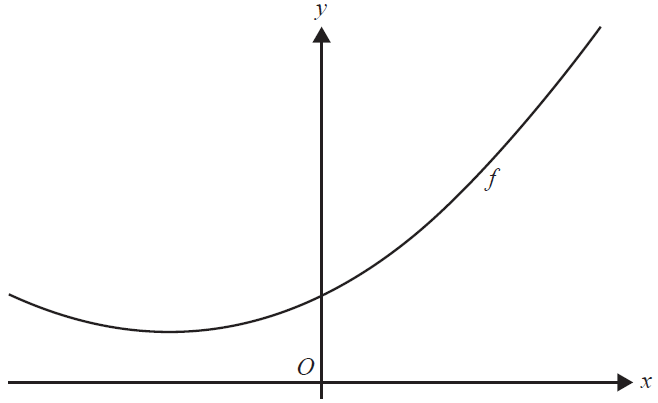

Consider the function \(f(x) = x^2 + 3x + 5\) and the point \(P(1, 0)\). Part of the graph of \(y = f(x)\) is shown below.
a. Show that point \(P\) is not on the graph of \(y = f(x)\). 1 mark
b. Consider a point \(Q(a, f(a))\) to be a point on the graph of \(f\).
i. Find the slope of the line connecting points \(P\) and \(Q\) in terms of \(a\). 1 mark
ii. Find the slope of the tangent to the graph of \(f\) at point \(Q\) in terms of \(a\). 1 mark
iii. Let the tangent to the graph of \(f\) at \(x=a\) pass through point \(P\).
Find the values of \(a\). 2 marks
iv. Give the equation of one of the lines passing through point \(P\) that is tangent to the graph of \(f\). 1 mark
c. Find the value, \(k\), that gives the shortest possible distance between the graph of the function of \(y = f(x-k)\) and point \(P\). 2 marks
Part of the graph of \(y = f(x)\), where \(f: (0, \infty) \to \mathbb{R}\), \(f(x) = x\log_e(x)\), is shown below.
The graph of \(f\) has a minimum at the point \(Q(a, f(a))\), as shown above.
a. Find the coordinates of the point \(Q\). 2 marks
b. Using \(\frac{d(x^2\log_e(x))}{dx} = 2x\log_e(x) + x\), show that \(x\log_e(x)\) has an antiderivative \(\frac{x^2\log_e(x)}{2} - \frac{x^2}{4}\). 1 mark
c. Find the area of the region that is bounded by \(f\), the line \(x=a\) and the horizontal axis for \(x \in [a, b]\), where \(b\) is the \(x\)-intercept of \(f\). 2 marks
d. Let \(g: (a, \infty) \to \mathbb{R}\), \(g(x) = f(x) + k\) for \(k \in \mathbb{R}\).
i. Find the value of \(k\) for which \(y=2x\) is a tangent to the graph of \(g\). 1 mark
ii. Find all values of \(k\) for which the graphs of \(g\) and \(g^{-1}\) do not intersect. 2 marks
End of examination questions
